The twin screw extruder is one of the most versatile and widely used machines in industries such as plastics, rubber, food, pharmaceuticals, and recycling. Known for its efficiency in processing a wide range of materials, the twin screw extruder is essential in creating high-quality products in various forms. But how does it actually work? In this article, we will break down the principles behind the twin screw extruder and explore its parts, functions, types, and advantages. By the end, you'll have a comprehensive understanding of twin screw extruder parts and how they come together to facilitate efficient material processing.
A twin screw extruder is a mechanical device used in the extrusion process to convert raw materials, such as plastics, rubber, and food ingredients, into uniform products through the use of two intermeshing or counter-rotating screws. These screws rotate inside a barrel, which houses the material. The rotating screws help convey, melt, mix, and shape the material into its final form, whether it's sheets, films, pellets, or other desired products.
Twin screw extruders have become crucial in the plastic processing industry due to their ability to handle diverse materials and provide precise control over material properties. Their ability to mix, melt, and compound materials at high speeds and temperatures makes them highly suitable for creating complex plastic products, compounds, and composites. They are commonly used for producing plastic pellets, which are later molded into final products.
While single screw extruders also perform similar functions, the key difference lies in the number of screws used. A single screw extruder employs one screw that rotates inside a barrel to move, melt, and shape the material. In contrast, a twin screw extruder has two intermeshing or counter-rotating screws that provide superior mixing, material handling, and processing capabilities. The twin screw extruder is often preferred for complex formulations and when high precision is needed.
To understand how twin screw extruders work, it’s essential to know the key components involved in the process. Below are the critical parts of a twin screw extruder:

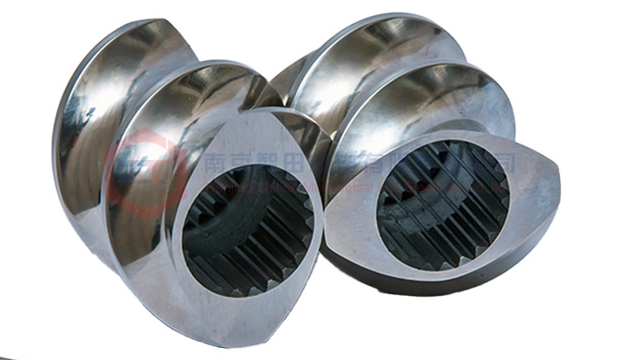

The screws in a twin screw extruder are the primary components responsible for transporting, compressing, and mixing materials. Depending on the design, the screws can be either intermeshing (both screws rotate towards each other) or non-intermeshing (screws rotate in opposite directions but do not touch). The screws are typically designed with different zones that have varying geometries to perform specific functions like conveying, melting, mixing, and kneading.
The barrel surrounds the twin screws and contains a series of zones that facilitate different stages of the extrusion process. It is generally constructed from hardened steel to withstand the high wear and tear associated with material processing. The barrel is heated and cooled in different sections to control the temperature of the material throughout the process.
The feed zone is where the raw material is introduced into the twin screw extruder. The material enters the barrel at the start of the screw's rotation. This zone is typically designed to have a larger diameter to allow for the smooth entry of materials without clogging. Proper feeding is essential to ensure that the material flows efficiently into the next stages of processing.
Once the material has been introduced into the extruder, it enters the melting zone. Here, heat is applied to the material, which causes it to melt and become more fluid. The conveying zone helps push the molten material forward by applying pressure. In twin screw extruders, the screws help apply shear force, which speeds up the melting process.
In many applications, it’s important to thoroughly mix or knead the material. This is especially true in processes that involve adding colorants, additives, or fillers. The kneading and mixing zones are designed with special screw geometries to facilitate thorough and homogeneous mixing of the material. This ensures that additives are uniformly distributed throughout the material.
In some applications, moisture or volatiles need to be removed from the material during the extrusion process. This is done through the venting and vacuum zones, where gases or volatile substances are extracted using a vacuum. This is particularly important for sensitive materials, such as those used in food or pharmaceutical processing, where moisture content can negatively impact the final product.
At the end of the twin screw extruder, the material is forced through a die, which shapes the molten material into its desired form. The die can be designed to produce different shapes, such as sheets, films, or pellets, depending on the application. The die is often equipped with cooling systems to help solidify the material as it exits the extruder.
Now that we know the key components of a twin screw extruder, let’s break down the process of how it works step by step:
The process begins with the feeding of raw material into the extruder. This material can be in the form of pellets, powders, or granules. The material is introduced into the feed zone, where the screws start rotating, moving the material forward into the barrel.
As the material moves along the screws, it is subjected to compression. The design of the screws helps to push the material forward while applying pressure to compress it. This step is crucial because it helps reduce the volume of the material, allowing it to melt and flow smoothly through the extruder.
As the material is compressed and heated in the barrel, it begins to soften and melt. The temperature of the barrel is carefully controlled to ensure that the material reaches the correct melting point without degrading. The twin screws apply shear force, which not only aids in melting but also contributes to the uniformity of the molten material.
Once the material has melted, it enters the kneading and mixing zones. Here, the screws’ geometry creates intense shear forces that thoroughly mix the molten material, ensuring that any additives, fillers, or colorants are evenly distributed. This step is essential for achieving the desired material properties.
After the material has been properly mixed and homogenized, it is pumped forward toward the die. The pressure applied by the screws helps push the molten material through the die, where it takes on its final shape. The die can be configured to produce various shapes, including films, sheets, and profiles.
After passing through the die, the extruded material is cooled to solidify it into its final form. Cooling systems are used to control the cooling rate to prevent defects like warping or uneven thickness. Once cooled, the material is calibrated to ensure it meets the desired dimensions and properties.
Twin screw extruders offer several advantages over other types of extruders. Here are some key benefits:
Enhanced Mixing Efficiency: The counter-rotating screws provide better mixing and homogenization, ensuring more uniform material properties.
Higher Processing Flexibility: Twin screw extruders can handle a wider range of materials and formulations, including those with complex additives or varying viscosities.
Improved Output Quality: The ability to control temperature, pressure, and screw speed allows for more precise control over the final product’s quality.
Better Control of Process Parameters: The design of twin screw extruders allows for better temperature and pressure control, leading to more consistent results.
High Throughput: Twin screw extruders are capable of processing large quantities of material in a short amount of time, making them highly efficient for industrial applications.
Twin screw extruders come in two main configurations: parallel and conical.
In a parallel twin screw extruder, the two screws rotate in the same direction, and their axes are aligned parallel to each other. This configuration is ideal for high-throughput applications and allows for better material conveying and mixing. It is commonly used in plastics and compounding applications.
In a conical twin screw extruder, the screws rotate in opposite directions and are positioned at an angle to each other. This design is often used for processing more delicate materials and offers better material handling capabilities. The conical configuration also helps in reducing the shear forces on the material, making it ideal for sensitive formulations.
Twin screw extruders are used across a variety of industries due to their versatility and performance. Here are some common applications:
In the plastics industry, twin screw extruders are used for the production of plastic pellets, films, sheets, and profiles. They are also used for compounding plastics with additives, fillers, and colorants.
Twin screw extruders are commonly used for processing rubber and elastomers, where intensive mixing and precise temperature control are crucial.
In food processing, twin screw extruders are used for producing snack foods, breakfast cereals, and pasta. They can handle a wide range of ingredients and provide precise control over texture and consistency.
In the pharmaceutical industry, twin screw extruders are used for drug formulation, particularly in the development of controlled-release medications. They offer excellent mixing and uniformity, which is critical for pharmaceutical products.
Twin screw extruders are also used for recycling plastic waste. The ability to mix and melt various types of plastic materials makes them ideal for reprocessing and repurposing materials for new products.
The twin screw extruder is an essential machine in a variety of industries. With its ability to provide superior mixing, material handling, and processing, it is crucial for producing high-quality products in plastic, rubber, food, pharmaceutical, and recycling applications. Understanding the parts, working principles, and advantages of twin screw extruders is key to leveraging their full potential in manufacturing processes.
Extruders work by melting and shaping raw materials as they are fed through a barrel containing rotating screws. The screws apply pressure and shear forces to the material, enabling it to melt and flow through a die to take on its final shape.
The disadvantages of twin screw extruders include their higher initial cost and increased maintenance requirements due to the complexity of the design.
The output of a twin screw extruder depends on the material being processed, the screw design, and the machine's size. Twin screw extruders can process a wide range of materials with high throughput, typically measured in kilograms per hour (kg/h).
A twin screw compounder is a specific type of twin screw extruder used for compounding materials, typically plastics. It is designed to mix additives, fillers, and other components into the base material to create a customized compound.
