The twin screw extruder is one of the most complex and versatile machines used in the manufacturing industry. It plays a pivotal role in transforming raw materials, such as plastics, rubber, and food ingredients, into finished products. However, to fully understand its operation, it is essential to examine its various sections, or parts, that work together seamlessly to facilitate the extrusion process.
In this article, we will break down the key components of the twin screw extruder parts. Each part has its specific function and contributes to the overall efficiency of the extrusion process. By the end of this article, you'll have a deeper understanding of how these parts work together to produce high-quality products in an efficient and controlled manner.

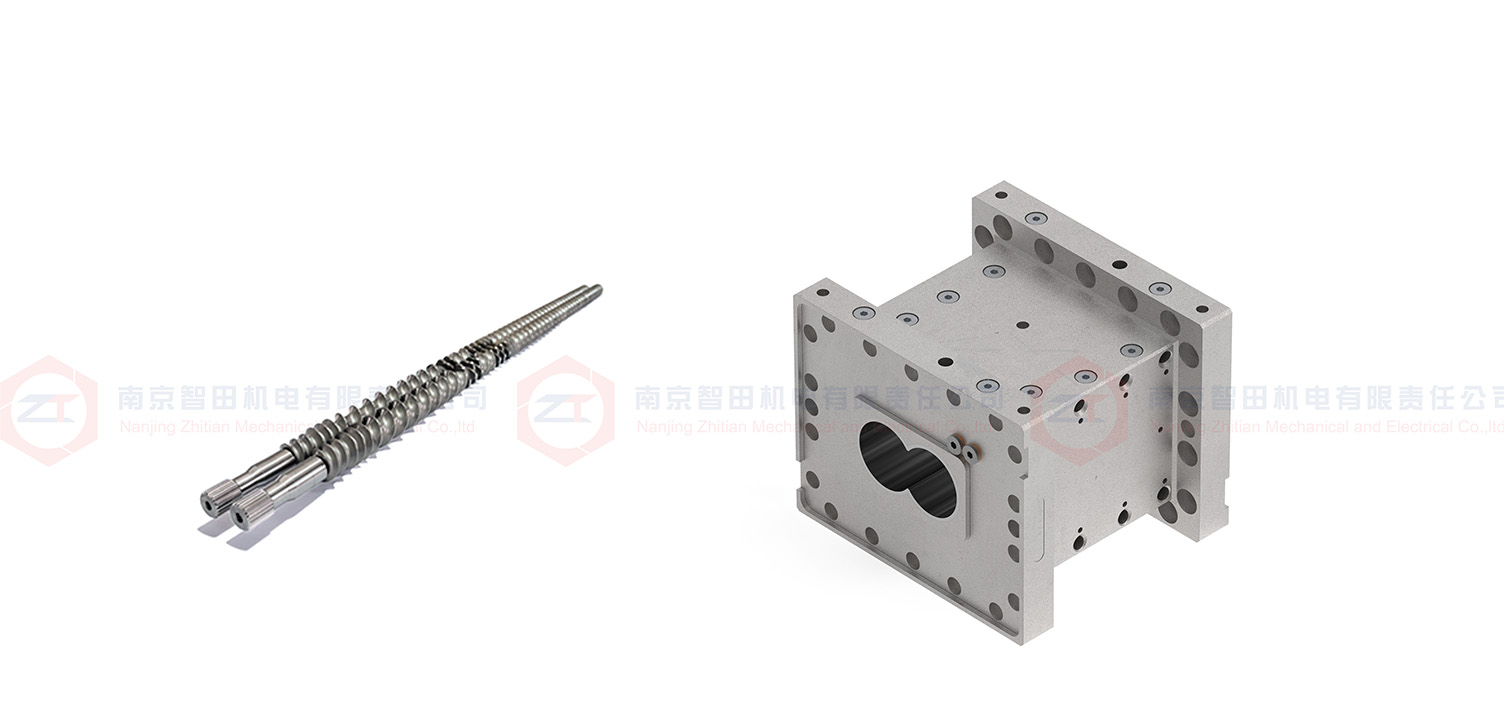

The barrel is the primary housing of the twin screw extruder. It is a cylindrical section that encloses the screws and provides the environment for the extrusion process. The barrel is typically constructed from high-grade steel to withstand the mechanical stresses and temperatures it is subjected to during operation. Its internal surface is often coated with wear-resistant materials to prevent damage from abrasive materials.
The barrel is divided into multiple sections, each designed for specific stages of the extrusion process. These sections may include the feed zone, melting zone, and mixing zone. The temperature of the barrel is usually controlled through electric heating elements or cooling water systems.
The screws are the heart of the extruder, responsible for moving and processing the material inside the barrel. In a twin screw extruder, there are two intermeshing or co-rotating screws that rotate inside the barrel. The screws are designed to transport, compress, melt, and mix materials as they move through the barrel.
The geometry of the screws is crucial to the performance of the extruder. The screws consist of various sections, including the feed zone, transition zone, and metering zone, each with different geometries that serve distinct functions. The feed zone, for instance, is designed to introduce the raw material, while the metering zone ensures consistent material flow.
The drive system is responsible for powering the screws and providing the necessary torque and speed for their operation. It consists of motors, couplings, and shafts that work together to transfer mechanical energy to the screws.
In a twin screw extruder, the drive system is typically powered by electric motors. These motors are connected to the screws through a system of couplings and shafts. The power output of the motors must be carefully controlled to maintain optimal screw speed and torque. This is achieved through advanced control systems that adjust motor speed and power according to the material being processed and the desired output.
The gearbox plays a crucial role in transmitting power from the drive system to the screws. It reduces the motor’s high-speed rotation to the lower, more manageable speeds required for the extruder’s operation. In many twin screw extruders, a high-torque gearbox is used to ensure that the screws rotate at the proper speed to handle the material being processed.
The gearbox is designed to handle the high torque generated during the extrusion process. It is also equipped with cooling systems to dissipate the heat generated during operation. Gearboxes come in different configurations depending on the extruder's design and size, with some featuring variable-speed drives to optimize performance.
Control and monitoring systems are essential for ensuring that the extruder operates efficiently and produces high-quality products. These systems include sensors, actuators, and control panels that allow operators to monitor and adjust various parameters such as temperature, pressure, screw speed, and material feed rate.
Modern twin screw extruders are equipped with advanced PLC (Programmable Logic Controllers) that provide precise control over the extrusion process. These controllers can be programmed to adjust parameters automatically based on real-time data, ensuring consistent product quality and reducing the chances of process errors.
The monitoring system is also responsible for detecting any malfunctions or irregularities in the system, alerting operators to potential issues before they become serious problems.
Extruders often process materials at very high temperatures, which is why efficient heating and cooling systems are necessary to maintain optimal processing conditions. Heating systems are typically incorporated into the barrel, allowing the material to be heated to the desired processing temperature. These can include electric heaters, oil heaters, or steam-heated systems.
Cooling systems are used to maintain consistent temperature control, particularly in areas like the die and the material cooling section. Cooling water channels within the barrel or dedicated cooling systems help regulate the temperature, preventing overheating that could lead to material degradation or machine damage.
Proper heating and cooling are crucial for ensuring that materials melt, flow, and cool at the correct rates, which ultimately affects the quality and consistency of the final product.
Modular screw elements allow for customization of the extruder's screw configuration. These elements are designed to be interchangeable, enabling manufacturers to adapt the screw configuration for different applications or materials. Modular screw elements come in a variety of designs, including conveying, mixing, and kneading elements.
By customizing the screw elements, manufacturers can achieve optimal performance for specific processes such as compounding, blending, or reactive extrusion. For instance, adding mixing elements to the screw can improve the homogenization of the material, while kneading elements can enhance the processing of highly viscous or abrasive materials.
The feeding system is responsible for introducing raw materials into the extruder. This system typically includes a hopper, which holds the raw material, and a feeding screw or conveyor that moves the material into the extruder’s feed zone.
The design of the feeding system is essential for controlling the flow rate and ensuring that the material enters the extruder at a consistent and uniform rate. Variations in material feed can result in process instability, product defects, or machine downtime. Advanced feeding systems often incorporate feed screws with variable speeds or volumetric control systems to provide more precise material handling.
Venting ports are essential for removing any trapped gases, moisture, or volatile compounds during the extrusion process. These ports are strategically placed along the barrel and are connected to vacuum systems or venting devices. By creating a vacuum or low-pressure zone at the venting ports, these systems can extract unwanted gases and prevent material contamination or defects.
Venting is particularly important in applications such as food or pharmaceutical extrusion, where moisture content or volatile compounds could affect product quality. It also helps prevent bubbles or air pockets from forming in the extrudate, ensuring a smooth, consistent output.
The die plate is the final component through which the extruded material exits the barrel and takes its desired shape. The die plate contains one or more openings that form the material into its final shape, whether it is a sheet, film, pellet, or profile.
The design of the die is crucial for determining the final product’s dimensions and surface quality. Different types of dies are used depending on the desired product. For example, a flat die is used to produce sheets, while a round die is typically used for producing pellets.
Cooling systems are often integrated into the die to solidify the material after it has been shaped. The cooling rate and die configuration can impact the final product’s characteristics, including thickness, surface finish, and dimensional accuracy.
Screen changers are devices used to filter impurities or contaminants from the material during the extrusion process. As the molten material flows through the extruder, it can pick up contaminants such as dust, dirt, or clumps of undissolved additives. Screen changers remove these contaminants by filtering the material through fine mesh screens.
These devices can be designed to operate continuously or intermittently, depending on the application. Continuous screen changers allow for uninterrupted operation, while intermittent screen changers require periodic screen changes.
The use of screen changers is critical in industries like food or medical extrusion, where product purity and quality are paramount.
The material handling system ensures that raw materials are transported to the extruder and that the final product is moved efficiently to the next stage of processing. This includes conveyors, hoppers, and storage systems that help feed the extruder and handle the final product.
Material handling systems are often automated to ensure a consistent flow of materials and reduce the risk of human error. For example, in plastic extrusion, material handling systems may be used to transport pellets from the hopper to the extruder and then move the extruded product to the cooling or cutting stage.
The key sections of an extruder include the barrel, screws, drive system, gearbox, heating and cooling systems, feeding system, venting ports, die plate, screen changers, and material handling systems.
The twin screw extruder consists of two intermeshing or co-rotating screws, a barrel that houses these screws, a drive system that powers the screws, and a series of zones such as feeding, melting, mixing, and metering zones. It also includes a die plate for shaping the material and a cooling system for solidifying the extruded product.
The zones of an extruder screw include the feed zone, compression zone, metering zone, and mixing or kneading zones, each serving a different purpose in moving and processing the material.
Twin screw extruders work by feeding raw materials into the extruder, where they are conveyed, melted, mixed, and shaped by the rotating screws. The material passes through various zones in the barrel, including melting, mixing, and metering zones, before exiting through the die plate in its final form.
In conclusion, the twin screw extruder parts work together in a precise and coordinated manner to process materials efficiently and effectively. From the barrel and screws to the die plate and material handling systems, each section of the extruder is designed to optimize the extrusion process and produce high-quality products. Understanding the function of each section is key to maximizing the performance and longevity of the extruder while ensuring optimal product quality.
