Extruders are vital components in various industrial applications, particularly in the manufacturing of plastics, food processing, and metalworking. Among the integral parts of an extruder is the extruder barrel, which, in conjunction with the screw, plays a pivotal role in material processing. This article explores the structural characteristics, classifications, and maintenance aspects of extruder screws and barrels, providing a comprehensive understanding of these components.
The extruder barrel and screw are the core elements of an extrusion system. Together, they facilitate the transportation, heating, mixing, and shaping of raw materials. Let’s delve into their structural characteristics:
The barrel is a cylindrical, high-strength steel component that houses the screw. Its primary functions include containing the material being processed and maintaining the appropriate temperature and pressure conditions. Key features include:
Material Composition: Often made from hardened steel or alloy materials to withstand high pressure, temperature, and wear.
Heating and Cooling System: Equipped with heating bands or coils and cooling channels to regulate the temperature during the extrusion process.
Inner Lining: May feature a bimetallic lining for increased wear resistance.
The screw is a helical device that rotates within the barrel. It’s responsible for transporting and processing materials by subjecting them to shear forces and temperature. Key features include:
Screw Flights: Helical ridges that move material forward.
Zones: Divided into feeding, compression, and metering zones, each serving a distinct purpose.
Material: Typically constructed from nitrided steel or other wear-resistant alloys.
Design Variability: Screws are customized based on the type of material and application requirements.
Extruder screw barrels are categorized based on design, function, and application. Here are the primary classifications:
Single-Screw Barrel: Features one screw and is widely used in applications such as plastic extrusion.

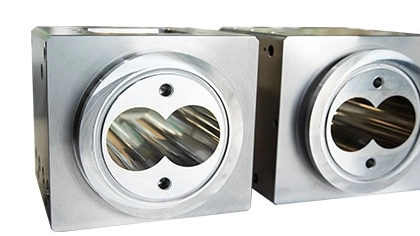

Twin-Screw Barrel: Contains two screws and is suitable for more complex processing tasks, such as mixing and compounding materials.
Multi-Screw Barrels: Used in specialized industries, such as pharmaceuticals, requiring precise processing.
Smooth Bore Barrel: Commonly used for materials with high lubrication properties.
Grooved Barrel: Contains grooves in the feeding zone to enhance material grip and prevent slippage.
Plastic Extrusion: For manufacturing pipes, sheets, and films.
Food Extrusion: Used for producing snacks, pet food, and pasta.
Metal Extrusion: Processes materials such as aluminum and copper.
Understanding the characteristics of extruder screws and barrels is essential for optimizing performance and ensuring product quality.
Extruder barrels and screws are exposed to abrasive materials and high temperatures, necessitating high wear resistance. Manufacturers achieve this by using hardened steel or adding wear-resistant coatings.
Precise temperature regulation is critical in extrusion. Heating elements and cooling systems in the barrel ensure uniform heat distribution, minimizing thermal degradation.
The choice of screw and barrel design depends on the material being processed. For instance, corrosive materials require barrels with corrosion-resistant linings.
Regular maintenance ensures optimal performance and prolongs the lifespan of extruder components. Key practices include:
Inspection: Routine checks for wear, cracks, and corrosion.
Cleaning: Removing material buildup to prevent contamination.
Lubrication: Ensuring smooth operation and reducing friction.
When an extruder screw shows signs of wear, repair welding is a cost-effective solution. Steps include:
Preparation: Cleaning the worn surface and removing damaged material.
Welding: Applying a wear-resistant welding material to restore the original dimensions.
Post-Weld Treatment: Grinding and polishing to achieve a smooth surface.
Quality Check: Ensuring the repaired screw meets operational standards.
The efficiency of an extruder depends on the precise interaction between the screw and barrel. A well-maintained barrel minimizes energy loss and ensures consistent product quality.
An extruder consists of several essential components:
Hopper: Feeds raw materials into the barrel.
Barrel: Houses the screw and regulates temperature.
Screw: Transports and processes materials.
Die: Shapes the processed material into the desired form.
Motor and Drive System: Provides the rotational force for the screw.
Heating and Cooling Systems: Regulate the extrusion temperature.
A screw barrel is the combination of the screw and the barrel. Together, they:
Transport raw materials.
Apply heat and pressure.
Facilitate mixing and homogenization.
Deliver the processed material to the die for shaping.
A twin extruder uses two screws within a single barrel. Twin extruders can be classified as co-rotating (screws rotate in the same direction) or counter-rotating (screws rotate in opposite directions). Key features include:
Superior mixing capabilities.
Enhanced material handling.
Versatility in processing multiple material types.
Applications include producing plastic compounds, food products, and pharmaceuticals.
The primary purpose of an extruder is to process raw materials into a finished or semi-finished product. Specific functions include:
Shaping: Producing pipes, films, and profiles.
Mixing and Compounding: Homogenizing different materials.
Melting: Converting solid materials into a molten state.
Pelletizing: Forming granules for further processing.
To highlight the versatility of extruder barrels, the following table compares single-screw and twin-screw extruders:
| Feature | Single-Screw Extruder | Twin-Screw Extruder |
|---|---|---|
| Mixing Efficiency | Moderate | High |
| Material Handling | Limited to certain materials | Suitable for diverse materials |
| Cost | Lower | Higher |
| Maintenance | Easier | More complex |
| Applications | Basic extrusion tasks | Complex compounding tasks |
The extruder barrel is a critical component in extrusion systems, facilitating the transformation of raw materials into finished products. By understanding its structure, classifications, and maintenance requirements, industries can optimize their processes and ensure high-quality output. Whether in plastics, food processing, or metalworking, the careful selection and upkeep of extruder barrels and screws are essential for operational success.
