When it comes to extrusion processes, a well-designed twin screw extruder is a critical piece of machinery for producing high-quality products in a variety of industries, including plastics, rubber, food, and pharmaceuticals. The twin screw extruder’s performance depends heavily on the selection of the right components or elements, as each part of the extruder plays a specific role in material processing.
Choosing the right twin screw extruder elements—such as screws, barrels, die heads, cooling systems, and drive mechanisms—requires careful consideration of the materials being processed, the desired product specifications, and the efficiency of the entire extrusion line. This article provides a comprehensive guide to understanding the key twin screw extruder elements and how to choose the right ones for your production line.
A twin screw extruder is a machine that uses two intermeshing screws to convey, mix, melt, and shape materials like plastics, rubbers, and food products. These screws rotate in opposite directions within a barrel, applying mechanical energy to melt and mix the material, which is then forced through a die to create the desired shape, such as pellets, sheets, or films. Twin screw extruders are used in a variety of applications, such as compounding, reactive extrusion, and film blowing. The versatility and performance of the twin screw extruder depend largely on the design and configuration of its components. Therefore, choosing the right elements can greatly impact the quality of the final product, operational efficiency, and overall production costs.
To choose the right twin screw extruder for your production line, it is crucial to understand the role and functionality of each element. Below are the key elements to consider when selecting the best configuration for your needs.

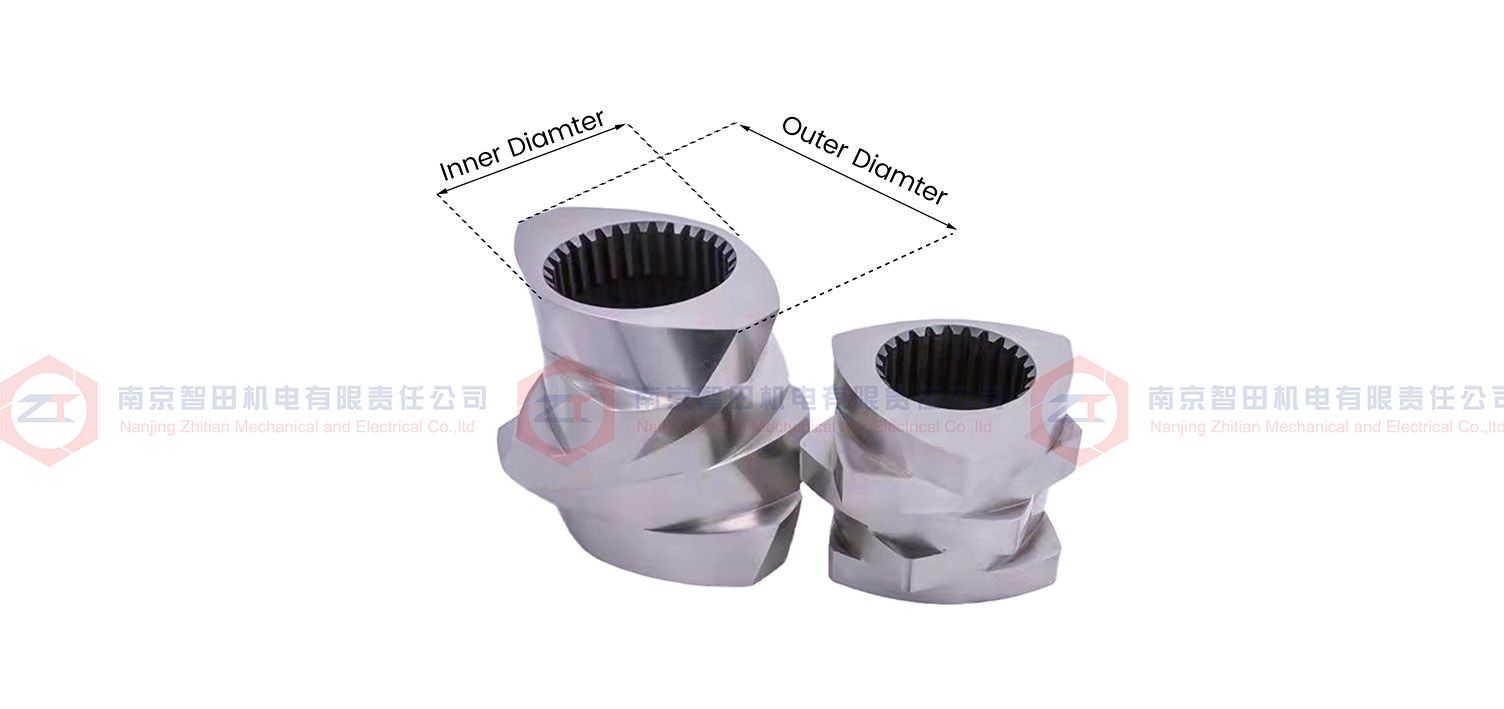

The screws are arguably the most important elements in a twin screw extruder. They are responsible for conveying, mixing, and melting the material. There are various screw designs, and each design has a specific function based on the material being processed.
Factors to consider when choosing screws:
Screw geometry: The screw design—such as the number of flights, the pitch, and the geometry—affects the material's conveyance, mixing, and shear properties. For instance, a high shear screw design is ideal for processing thermoplastics that require intense mixing, while low shear screws are better suited for more fragile materials.
Screw material: Screws are made from different alloys, with wear-resistant materials being essential when processing abrasive materials like glass fibers or filled resins.
Screw length: The length of the screw determines how much time the material spends in the barrel, which influences mixing, melting, and shear forces. Longer screws are ideal for complex mixing and high-throughput applications.
Choosing the right screw configuration depends on the material properties, the required mixing intensity, and the type of end product.
The barrel houses the twin screws and provides the space for material processing. Barrels come with different features such as heating and cooling zones, and some may be equipped with venting sections to remove moisture or volatiles during processing.
Factors to consider when choosing a barrel:
Material: Barrels are typically made of high-strength steel alloys to resist wear, corrosion, and thermal degradation. The choice of material is crucial if you're working with abrasive or high-temperature materials.
Barrel design: The barrel design can include different zones such as the feed zone, melting zone, and compression zone. The design of the barrel should match the material and the intended product characteristics. A longer compression zone is ideal for materials that need significant shear forces to melt properly, while a shorter zone works well for less viscous materials.
Cooling or heating capabilities: Barrels are often equipped with external jackets that allow for temperature control. Heating and cooling zones can be adjusted to maintain a stable processing temperature, which is critical for thermally sensitive materials. A good temperature regulation system ensures that the material is processed uniformly and prevents degradation.
Once the material has been mixed, melted, and homogenized by the screws and barrel, it is forced through the die head, which shapes the material into its final form. The die head is one of the most critical elements for producing a consistent product.
Factors to consider when choosing a die head:
Die configuration: The die head determines the shape and size of the extrudate. The configuration will vary depending on the type of product being made, whether it’s sheets, films, pipes, or pellets. The die must be designed with precision to ensure uniform thickness and proper flow.
Material and wear resistance: For high-volume production or when processing abrasive materials, the die must be made from wear-resistant materials.
Die size: The die size should be selected based on the throughput required by the production line. The larger the die opening, the greater the throughput, but it should be balanced with the material’s flow characteristics to avoid defects like uneven extrusion.
A well-designed cooling system ensures that the extruded material maintains the proper shape and dimensions after it exits the die. Cooling is critical for products that need to be solidified quickly to prevent warping or distortion.
Factors to consider when choosing a cooling system:
Water cooling vs. air cooling: Water cooling systems are more efficient at regulating the temperature of the extrudate, especially for larger volumes, while air cooling systems are used for lighter, more delicate products.
Cooling control: The cooling system must maintain a consistent temperature throughout the extrusion process. Cooling should be applied gradually and uniformly to prevent defects in the final product.
Cooling media: Some applications may require specialized cooling media to prevent contamination or to achieve precise temperature control.

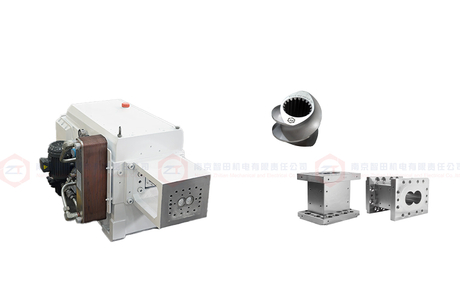

The drive system powers the screws and other moving parts of the extruder. The choice of drive mechanism affects the extruder’s speed, torque, and overall efficiency. A powerful and reliable drive system ensures that the extruder runs smoothly without interruptions.
Factors to consider when choosing a drive system:
Motor size and power: The motor size should be selected based on the throughput and the torque required by the extrusion process. High-throughput lines often require larger motors to achieve the necessary speeds.
Gearbox configuration: The gearbox transfers power from the motor to the screws. Gearboxes must be sized appropriately to handle the forces generated by the extruder, and they should be designed for ease of maintenance.
In many extrusion processes, materials can release moisture or volatiles that need to be removed to prevent defects in the final product. A venting system allows these gases or moisture to escape while maintaining the required pressure inside the barrel.
Factors to consider when choosing a venting system:
Vacuum venting: For certain applications, especially when processing thermoplastics, vacuum venting systems are used to improve the removal of moisture or volatiles.
Location of vents: Venting zones are typically located in the barrel. The number and positioning of these vents can impact the removal of gases and moisture, so they should be strategically placed to optimize the material flow.
Modern twin screw extruders are equipped with sophisticated control systems that help operators monitor and adjust key parameters like screw speed, temperature, pressure, and material flow. The control system ensures optimal performance and provides real-time data to improve the extrusion process.
Factors to consider when choosing a control system:
Automation: Advanced control systems allow for precise control of various parameters, ensuring consistent product quality. They also enable automation for better process efficiency.
Feedback mechanisms: The control system should include feedback loops that automatically adjust settings in response to changes in material properties or operational conditions.
User interface: A clear and intuitive user interface allows operators to monitor and adjust the extrusion process quickly and accurately.
Choosing the right twin screw extruder elements is essential for achieving the desired results in your production line. The screws, barrel, die head, cooling system, drive mechanism, and control system all work together to ensure that the material is processed efficiently and the final product meets the required specifications. When selecting these elements, you need to consider the specific characteristics of the materials you are processing, the production requirements, and the desired product quality.
By understanding the functionality and importance of each element, you can make informed decisions that will optimize the performance of your twin screw extruder, reduce downtime, and improve the quality of your products. If you are looking for high-quality twin screw extruder elements, visit Nanjing Zhitian Mechanical and Electrical Co., Ltd. to learn more about their offerings and how they can help you achieve the best results in your production line.
